9EP-2200S Trailed 2200mm Shredder Square Baler for Tough Stalks
Harvest tough corn and sorghum stalks efficiently with the 9EP-2200S shredder square baler. Featuring a hammer-claw pickup. Upgrade your PTO shafts today!
Product Overview

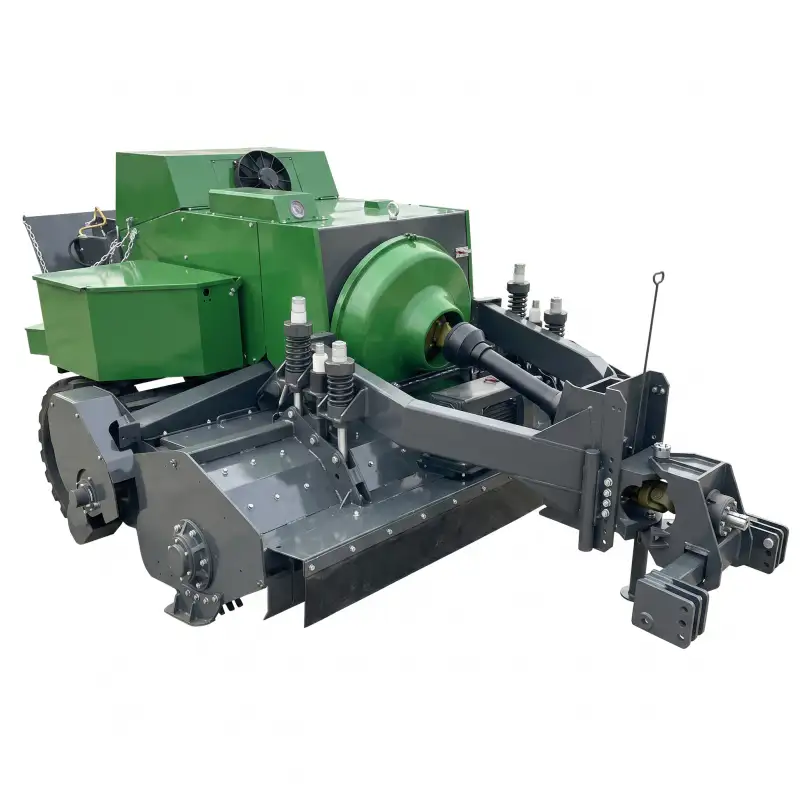

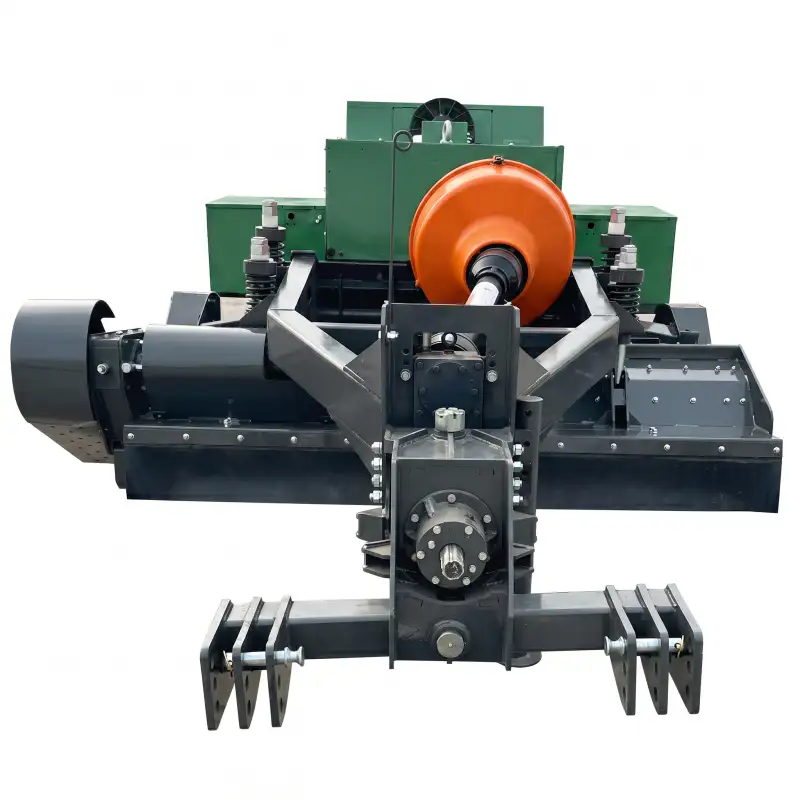

Managing thick, abrasive crop residues like corn, sorghum, and cotton stalks requires highly specialized equipment. The 9EP-2200S Shredder Square Baler by Ever Power is an advanced, trailed harvesting solution specifically engineered to crush, rub, and bale tough agricultural biomass in a single pass. Unlike standard balers, the 9EP-2200S features an aggressive hammer-claw pickup and an integrated shredding mechanism that handles upright, lodged, or pre-cut stalks with unparalleled efficiency, transforming them into dense 460x360mm rectangular bales ready for feeding or biomass utilization. Processing heavy stalks places extreme demands on a machine's driveline; therefore, we proudly supply heavy-duty Baler Gearboxes and precision-forged PTO Shafts engineered to deliver zero-slip torque transfer from your tractor. Should your harvest involve high-moisture silage that necessitates outdoor storage and weather resistance, we also provide a comprehensive lineup of Round Balers. Partner with Ever Power for a complete, one-stop agricultural machinery supply chain that redefines field productivity.
Technical Specifications
Built to process the toughest field residues, the 9EP-2200S delivers uncompromising mechanical performance. Review the detailed specifications below.
| Specification Parameter | Detail & Value |
|---|---|
| Model Name | 9EP-2200S Square Baler (Shredder Edition) |
| Hitching Method | Trailed (Towed-type) |
| Picking Width | 2200 mm |
| Picker Structure | Hammer-Claw Type |
| Feeder Structure | Fork Feeding Mechanism |
| Knotter Type | D Type Knotter |
| Number of Knotters | 2 pcs |
| Compression Chamber Size (W x H) | 460 x 360 mm |
| Baling Method | Automatic Rope Baling |
| Matching Power Requirement | >= 73.5 kW |
| Overall Dimension (L x W x H) | 6240 x 2760 x 1700 mm |
| Machine Weight | 2350 kg |
Working Principle & Structure
The 9EP-2200S utilizes a specialized mechanical sequence to convert standing or laid stalk crops into perfectly formed bales. Power is delivered from the tractor via a heavy-duty PTO shaft into the primary baler gearbox. Unlike standard balers, the 2200mm front header utilizes an aggressive Hammer-Claw pickup mechanism. This system dynamically strikes, crushes, and rubs hard stalks (like corn and sorghum) as it lifts them from the ground. The shredded biomass is then aggressively pushed by the fork feeding mechanism into the 460x360mm compression chamber. A high-impact plunger compacts this coarse material into dense flakes. Once the target bale length is achieved, the ultra-reliable dual D-Type knotters wrap and secure the bale with heavy-duty twine, readying it for immediate ejection.
Core Advantages
Designed for agricultural contractors and large-scale operations dealing with difficult biomass, the 9EP-2200S delivers distinct operational advantages.
💥 Integrated Shredder Mechanism
The single-stage shredding structure efficiently crushes and rubs tough corn and sorghum stalks. This significantly improves bale density, forming stability, and livestock palatability.
🌾 Versatile Crop Handling
Uniquely capable of reliably picking up and baling upright, lodged, or previously laid windrows of heavy biomass, greatly expanding your harvesting window.
🪢 Precision D-Type Knotters
Heavy, coarse stalks place immense outward pressure on twine. Our dual D-Type knotters provide highly secure knots that prevent bale explosion during mechanical loading.
⚙️ Unyielding Powertrain
Equipped with Ever Power's custom-engineered gearboxes and rugged PTO shafts, this machine absorbs massive torque spikes without breaking shear pins.
🧱 High-Density Formation
The robust plunger mechanism continuously packs shredded material into strict 460x360mm dimensions, yielding uniform, heavy bricks that optimize warehouse stacking limits.
Structure & Craftsmanship
Baling heavy, rigid stalks requires a machine built with uncompromising industrial strength. Weighing in at 2350 kg, the 9EP-2200S is constructed upon a massively reinforced steel chassis designed to endure extreme torsional stress. The hammer-claw rotor is dynamically balanced at the factory to eliminate high-speed vibrations, while the compression chamber is lined with specialized wear-resistant steel to handle abrasive biomass. At the heart of its durability is its power transmission. By utilizing Ever Power's proprietary Baler Gearboxes and heavy-duty PTO Shafts, mechanical strain is perfectly managed, protecting the timing of the D-Type knotters and drastically lowering your total cost of ownership.
Typical Applications
The 9EP-2200S is the ultimate solution for demanding agricultural environments and difficult crop types:
- ✓
Corn & Sorghum Stalks: The hammer-claw system effortlessly crushes these thick, rigid stalks (moisture content 10%-23%), ensuring tight, dense bales that are ideal for winter livestock feed or bedding. - ✓
Biomass Energy Recovery: Efficiently collects and processes cotton stalks and heavy crop residues, compressing them tightly to minimize transport costs to biomass power plants. - ✓
Standard Straw & Forage: While designed for heavy stalks, it easily handles standard wheat straw, rice straw, and alfalfa, making it a highly versatile machine for mixed farming operations.
Selection Guide & Related Products
Because the 9EP-2200S drives both an aggressive shredding rotor and a heavy-duty compaction plunger, it requires a robust tractor with a minimum power output of 73.5 kW (approx. 100 HP). To handle the intense torque loads required for crushing corn stalks, standard drivelines will fail. It is absolutely critical to equip your tractor with our heavy-duty PTO Shafts and matching high-torque Gearboxes to guarantee safe, continuous operation without constant shear pin breakage.
Alternative Baling Solutions for Wet Crops
While square balers are phenomenal for processing dry, tough stalks for indoor storage, they are not suited for high-moisture silage that requires fermentation. If your operation bales heavy, wet silage, we highly encourage you to explore our advanced range of Round Balers, which naturally shed water and can be configured for airtight film wrapping.
Brand Comparison & Cross-Reference
See why the Ever Power 9EP-2200S stands out in the heavy-duty shredder baler market.
| Feature / Specification | Ever Power 9EP-2200S | Competitor V (Premium) | Standard Non-Shredder Balers |
|---|---|---|---|
| Pickup Mechanism | Hammer-Claw (Crushes Stalks) | Rotor Cutter | Spring Tine (Prone to jamming) |
| Crop Versatility | Upright, Lodged, or Cut | Cut Windrows Only | Light Crops Only |
| Machine Weight (Durability) | 2350 kg | 2200 kg | ~1600 kg (Frame flexes) |
| Driveline Components | Heavy-Duty Custom Gearboxes | Standard OEM | High Maintenance Cost |
Disclaimer: We mention these brands and models for compatibility and cross-reference purposes only. Ever Power provides premium alternative replacements, not counterfeit products. We do not intend to infringe on any trademarks.
Quality Certification & Services
Operating in tough biomass environments requires flawless engineering. The 9EP-2200S is manufactured under strict ISO 9001 and CE quality standards to guarantee field safety and operational longevity. Ever Power stands firmly behind every machine we produce, supported by a global parts network. From heavy-duty PTO shafts and shear bolts to custom replacement Baler Gearboxes, our responsive service ensures your harvest is never delayed by equipment downtime.
Global Farm Success Stories
Discover how the 9EP-2200S shredder baler is transforming crop residue management worldwide.
Location: Iowa, USA (Large Scale Corn Farm)
"Managing corn stover used to take us two passes—one to shred, one to bale. The 9EP-2200S does it in one pass. The hammer-claw pickup destroys the tough stalks, and the bales are incredibly dense. Pairing it with Ever Power's heavy PTO shaft means we never snap shear pins anymore."
Location: Bavaria, Germany (Biomass Energy Co-op)
"We need extremely dense bales to make transporting biomass profitable. The crushing action of this machine breaks down the rigid fibers of sorghum perfectly, allowing the plunger to pack it tightly. The custom gearboxes have run flawlessly for three seasons straight."
Location: New South Wales, Australia (Contract Harvesting)
"Sometimes we have to bale fields where the crop has lodged (fallen over) due to storms. Standard balers just ride over it. The 9EP-2200S digs in and picks it all up. The D-Type knotters hold the tension perfectly, even on the heaviest bales."
Frequently Asked Questions (FAQ)
Q1: How much tractor power is required for the 9EP-2200S?
A: Because it simultaneously shreds and compresses heavy stalks, this machine requires a robust tractor with a minimum PTO power output of 73.5 kW (approximately 100 HP).
Q2: What is the benefit of the Hammer-Claw shredder mechanism?
A: The hammer-claw violently rubs and crushes tough fibers like corn and cotton stalks before they enter the chamber. This makes the material softer, allowing for much denser bales and significantly improving palatability for livestock.
Q3: Can this baler pick up crop that has fallen over?
A: Yes, unlike traditional spring-tine pickups, the aggressive hammer-claw design is uniquely capable of lifting and processing lodged or flattened crops directly from the field surface.
Q4: How do I ensure my driveline won't break under extreme loads?
A: Standard shafts will snap under the torque required to crush corn stalks. You must match the implement with Ever Power's heavy-duty PTO Shafts and reinforced Gearboxes, which are specifically rated for high-impact loads.
Q5: Do you supply machinery for high-moisture silage?
A: Yes. If your operation requires fermenting wet silage, we highly recommend purchasing from our advanced line of Round Balers, which are perfectly suited for outdoor storage and film wrapping.
Partner With Ever Power
Transform Your Biomass Harvesting Today
Stop fighting with tough crop residues. Partner directly with the manufacturer to secure robust Square Balers, weather-resistant Round Balers, and the heavy-duty Gearboxes and PTO Shafts required to power through any field condition.
Contact Us for Custom Quotes & Dealer Pricing
Learn more about our dedication to industrial engineering on our About Us page.
